Easiway Systems offers a flexible component-based solution for the screen reclaiming area. All of our equipment is designed and built in the USA and manufactured out of white, welded, corrosion-proof polypropylene.

Dimensions: 32" W x 24" D x 38" H (Overall Height: 64", Leg Height: 26")

Key Features:

• 1/4" Polypropylene
• Free-floating screen rack

• Does not include top

• No light kit

*This booth ships ground and does not have a crate charge.

The Workhorse Wash It is designed to work at waist height and are ergonomically built for function and comfort. It is made of sturdy steel construction, has a translucent back window and comes standard with two screen racks. The translucent back window allows for natural light to pass through making it easier to see the design when developing and also to see missed spots when cleaning the screen. A light can easily bee mounted on or behind the sink for enhanced visibility. An optional squeegee holder holds up to 8 squeegees at a time for cleaning and drying.

Additional packaging charge of $25 for Wash It Booths

WSH-36 - 36"W x 72"H x 24"D  /  WSH-52 - 52"W x 72"H x 24"D

RhinoSpray RS1500A High-Pressure Screen Cleaner

Easily blast away ink or emulsion with this RS1500A commercial hand carry electric cold water pressure washer. With a 2 hp motor that provides 1450 PSI of pressure at 2.0 GPM, this pressure washer is ready for washing anything your shop has to offer. In addition to preventing haze, stains, and ghosts in your images.

The RS1500A Heavy Duty features virtually noise-free operation with 1450 PSI for shops cleaning up to 100 screens per day. The RS1500A Pressure Washer features include an industrial motor that is totally enclosed and thermal overload protected, industrial triplex plunger pump with ceramic plungers and stainless steel valves are protected by unloader valve. The RS 1500A washer is equipped with low pressure chemical injection for application of degreasing liquid detergents and is activated by a hi-low pressure adjustable nozzle on the trigger gun. It has a fully rebuildable, three piston pump and motor unit, a 25’ high-pressure hose, and a trigger gun control. Its power cord also has a GFCI (ground fault circuit interrupter) installed on it to protect users from severe electrical shocks and to promote safety in your business.

Call for parts availability.

RS1500A: 110V, 1450 PSI, 2.0 GPM, 18A, 2HP  w/GFCI Heavy Duty (20-35 screens per day)

RS1500AX: 110V, 1450 PSI, 2.0 GPM, 18A, 2HP Elec. with GFCI Heavy Duty (20-35 screens per day)

RS1000WM: 110V, 1000psi, 3.0 GPM, 15A, Wall Mount, Heavy Duty (60-100 screens per day)

RS1500WM: 220V, 1500psi, 3.0 GPM, 17A, Wall Mount, Heavy Duty (60-100 screens per day)

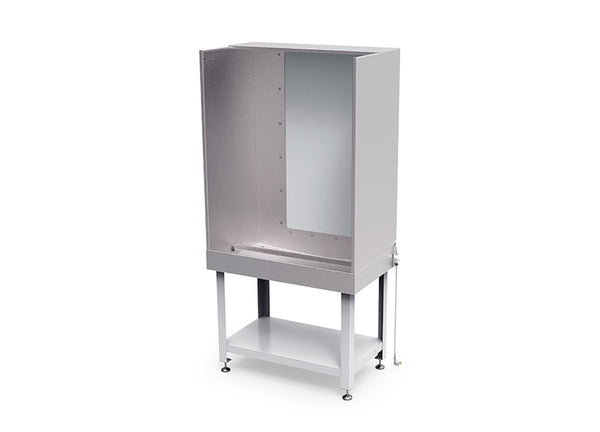

Polylite Series Washout Booth

Having a high quality, well designed washout booth is critical in the proper cleaning and preparation of screens. Your Inks and emulsion can be power washed off the screen and are contained within the sink to help keep other areas of your shop clean and dry. Constructed out of Polypropylene plastic, RhinoTech washout booths will hold up against years of daily washing, emulsion, and ink reclamation. Polypropylene will also deaden the vibration caused by high pressure sprayers making them much quieter when compared to stainless steel or galvanized metal booths. Polylite Series Washout Booth are made with the busy printer in mind.

• Integrated frame holder
• LED lighting
• Translucent back panel
• Waterproof light switch
• 3/8″ or 1/4″ thick chemical resistant polypropylene plastic(depending on model)
• Easy clean drain
• 1.5” threaded drain connection for easy plumbing
• Fully welded material
• Backlit for frame inspection
• Convenient side-mounted On/Off Switch.
• 120V Lighting
• Aluminum Stand or Plastic Legs(depending on model)

($100 Crating Charge Included)

**Ships LTL Freight - additional charge, call for pricing

The Easiway EDF EasiFlo™ Filtration Unit is designed to help you maintain an efficient and clean wastewater stream. This is an under-booth filtration system that will catch your ink sludge and emulsion waste.

The EDF easily works with your present plumbing and when used in conjunction with Easiway’s eco-conscious products, the discharge from the system is drain safe. This unit has a 200-micron filter that drains into a convenient easy-access baffle tank, it can be used alone and let gravity do the work, or you can purchase a sump to use for quicker draining.

* No crating charges, which provides a distinct cost advantage. Professionally packed and boxed for easy, inexpensive ground shipping.

This system fits under all Easiway washout booths.

Dimensions and Weight

• EDF-100 Dimensions: 12" W, 24" D, 24" H  |  Weight: 24.0 lbs
• EDF-200 Dimensions: 20" W, 28" D, 24" H  |  Weight: 25.0 lbs
• Material: Manufactured of white, welded, corrosion-resistant polypropylene

EconoWash-2 PolyLite Washout Booth with a M-10-2 Recirulation Unit 2.0 GPM Air Pump.  The Econowash-2 recirculation system has a polypropylene construction, chemical resistant piping, spray wand holder, chemical shelves, screen holder, easy-clean drain, vent ready, a metal base for stability and is free standing. 60"W x 48"H x 30"D.  Crating charge of $100 is included.
