Vectore Series

Name: Vectore Series
Brand: Anatol
Availability: InStock

$0.00

Email us about this product

Contact us for current pricing.

Introducing Anatol's exclusive SSE configuration!

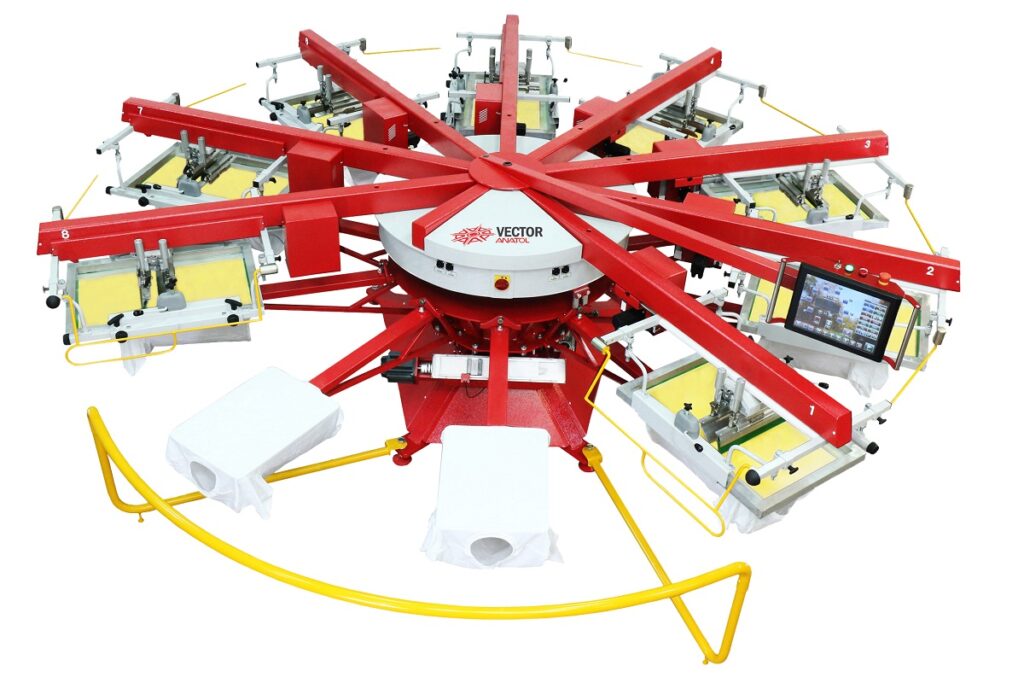

Want to take advantage of the benefits of electric screen printing, but our all-electric VOLT isn’t the right fit for you? The Vector Automatic Screen Printing machine is a step between a pneumatic-based press and Anatol VOLT. Vector utilizes electric technology combined with pneumatic free wheel (indexer locking/unlocking) and pneumatic up-and-down squeegee/flood bar “chop” movement. Anatol’s exclusive SSE configuration – servo lift, servo indexing and AC electric print heads – lets you print with maximum consistency and reliability. We’ve reduced air consumption rates to the lowest in the industry, saving you money and the hassle of pneumatic repairs. 90% fewer pneumatic components than competing screen printing presses, indicates that Vector requires less air, less maintenance, less downtime and less cost to operate.

The Anatol Vector is designed to be the most versatile automatic screen printing machine in the industry. Available in more sizes than any other auto and with all the features you expect from Anatol, the Vector lets you work the way you want – not the way your machine forces you to. The Vector is available in four different print areas up to 20″ x 28″: Vector S, Vector M, Vector L and Vector XL, in models from 4 to 18 colors.

Standard features

Print Heads

AC electric-driven print heads enhance smoothness, speed and power
Front and rear stroke adjustment
Single-handed tool-less squeegee/flood bar locking for fast and easy loading and changeover

Registration

True three-point micro-registration of screen (front-back, left-right, rotational movement)
Compatible with Anatol’s ARME pre-registration system, as well as a number of other different pre-registration systems available on the market
Easy Set Up mode shortens job setup times

Control Interface

Aries 2 OS – User-friendly operation system
15’’ touchscreen with intuitive one-touch access to all job settings and machine functions for fast setup
Rotating boom arm for easy access to each print head
Easy access to operator’s manual
Automatic software updates available via Wi-Fi
Receive automatic email notifications with production statistics
Connect the machine directly to Anatol Service with Presentation Mode

Functions

Save all parameters of a stored job: off-contact, indexing speed, print head speed, number of strokes, flash cure time and temperature, ink colors
Quickly copy the same print head settings to all heads
Adjust flash cure temperature and intensity from the touchscreen
Set pallet preheat temperature with smart flash

Heads Up Feature

On machines with an odd number of print heads, this trait allows you to raise the last head on a hinge, to create dedicated loading and unloading stations.
It’s like getting two machines in one. For example, a 10 station/9 color machine can become a 10 station/ 8 color machine when you need two operators to load and unload and aren’t using the last head, allowing you to work faster.

Pallet System

Slide-style pallets allow for adjustments in print location
Tool-free locking
Precise four-point pallet leveling system
16’’x22’’ solid aluminum, low profile rubber-coated pallets standard, with a wide variety of custom pallets available separately
Laser alignment system makes apparel alignment quick and easy

Skip Shirt & Smash Button

Save time and supplies by preventing the press from printing on empty pallets
Smash button halts printing in the event of a shirt being loaded improperly – more reliable than systems utilizing sensors

Indexing System

Servo indexer allows for clockwise, counterclockwise and half indexing
Smooth and quiet indexing at high speeds
High – quality linear screw design
Freewheel capabilities allow manual carousel rotation

Options

Quick-release pallet system
Foot pedal to control indexing
Quartz flash cure units
Special sizing available for doorways as small as 28’’

Safety System

Safety bars, located between each print head, and on each side of the load and unload stations ensure safety during press set-up and operation

Central Off-Contact

Digitally-controlled central off-contact with 38 settings up to 3/8’’, giving you the flexibility to print virtually any ink on any substrate with the touch of a button

Laser Alignment System

Laser alignment system for quick and easy apparel alignment
Four independently-adjustable straight red lasers

VECTOR Specifications

Vector S

Stations Colors	Maximum Print Area	Maximum Screen Size	Standard Pallet Size	Press Diameter	Stationary Arm or Boom Touchscreen Support	Electrical Requirements	Air Requirements @ 90 PSI
06/04	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	9’4”	Boom	1 ph 208/230v, 50/60 Hz, 13A 3 ph 208/230v, 50/60 Hz, 8A	0.6 SCFM 17 l/min
06/05	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	9’4”	Boom	1 ph 208/230v, 50/60 Hz, 14A 3 ph 208/230v, 50/60 Hz, 9A	0.7 SCFM 21 l/min
08/06	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	10’2″	Boom	1 ph 208/230v, 50/60 Hz, 14A 3 ph 208/230v, 50/60 Hz, 9A	0.9 SCFM 25 l/min
08/07	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	10’2″	Boom	1 ph 208/230v, 50/60 Hz, 15A 3 ph 208/230v, 50/60 Hz, 10A	1.1 SCFM 30 l/min
10/08	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	11’2″	Boom	1 ph 208/230v, 50/60 Hz, 16A 3 ph 208/230v, 50/60 Hz, 11A	1.2 SCFM 34 l/min
10/09	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	11’2″	Boom	1 ph 208/230v, 50/60 Hz, 17A 3 ph 208/230v, 50/60 Hz, 12A	1.3 SCFM 38 l/min
12/10	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	12’4″	Boom	1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 13A	1.3 SCFM 38 l/min
12/11	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	12’4″	Boom	1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 14A	1.3 SCFM 38 l/min

Vector M

Stations Colors	Maximum Print Area	Maximum Screen Size	Standard Pallet Size	Press Diameter	Stationary Arm or Boom Touchscreen Support	Electrical Requirements	Air Requirements @ 90 PSI
06/04	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	9’8	Boom	1 ph 208/230v, 50/60 Hz, 13A 3 ph 208/230v, 50/60 Hz, 8A	0.6 SCFM 17 l/min
06/05	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	9’8”	Boom	1 ph 208/230v, 50/60 Hz, 14A 3 ph 208/230v, 50/60 Hz, 9A	0.7 SCFM 21 l/min
08/06	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	10’11”	Boom	1 ph 208/230v, 50/60 Hz, 14A 3 ph 208/230v, 50/60 Hz, 9A	0.9 SCFM 25 l/min
08/07	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	10’11”	Boom	1 ph 208/230v, 50/60 Hz, 15A 3 ph 208/230v, 50/60 Hz, 10A	1.1 SCFM 30 l/min
10/08	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	12’3″	Boom	1 ph 208/230v, 50/60 Hz, 16A 3 ph 208/230v, 50/60 Hz, 11A	1.2 SCFM 34 l/min
10/09	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	12’3″	Boom	1 ph 208/230v, 50/60 Hz, 17A 3 ph 208/230v, 50/60 Hz, 12A	1.3 SCFM 38 l/min
12/10	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	13’6”	Boom	1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 13A	1.5 SCFM 42 l/min
12/11	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	13’6”	Boom	1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 14A	1.6 SCFM 46 l/min
14/12	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	15’7″	Boom	3 ph 208/230v, 50/60 Hz, 16A	1.8 SCFM 50 l/min

Vector L

Stations Colors	Maximum Print Area	Maximum Screen Size	Standard Pallet Size	Press Diameter	Stationary Arm or Boom Touchscreen Support	Electrical Requirements	Air Requirements @ 90 PSI
06/04	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	10’5”	Boom	1 ph 208/230v, 50/60 Hz, 13A 3 ph 208/230v, 50/60 Hz, 8A	0.6 SCFM 17 l/min
06/05	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	10’5”	Boom	1 ph 208/230v, 50/60 Hz, 14A 3 ph 208/230v, 50/60 Hz, 9A	0.7 SCFM 21 l/min
08/06	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	12′	Boom	1 ph 208/230v, 50/60 Hz, 14A 3 ph 208/230v, 50/60 Hz, 9A	0.9 SCFM 25 l/min
08/07	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	12’	Boom	1 ph 208/230v, 50/60 Hz, 15A 3 ph 208/230v, 50/60 Hz, 10A	1.1 SCFM 30 l/min
10/08	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	13’8”	Boom	1 ph 208/230v, 50/60 Hz, 16A 3 ph 208/230v, 50/60 Hz, 11A	1.2 SCFM 34 l/min
10/09	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	13’8”	Boom	1 ph 208/230v, 50/60 Hz, 17A 3 ph 208/230v, 50/60 Hz, 12A	1.3 SCFM 38 l/min
12/10	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	15’3”	Boom	1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 13A	1.5 SCFM 42 l/min
12/11	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	15’3”	Boom	1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 14A	1.6 SCFM 46 l/min
14/12	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	16’8”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 16A	1.8 SCFM 50 l/min
16/14	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	18’4″	Stationary Arm	3 ph 208/230v, 50/60 Hz, 27A	1.9 SCFM 54 l/min
18/16	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	19’8”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 30A	2.0 SCFM 58 l/min
20/18	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	21’4”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 32A	2.2 SCFM 63 l/min

Vector XL

Stations Colors	Maximum Print Area	Maximum Screen Size	Standard Pallet Size	Press Diameter	Stationary Arm or Boom Touchscreen Support	Electrical Requirements	Air Requirements @ 90 PSI
08/06	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	13’10”	Boom	1 ph 208/230v, 50/60 Hz, 14A 3 ph 208/230v, 50/60 Hz, 9A	0.9 SCFM 25 l/min
08/07	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	13’10”	Boom	1 ph 208/230v, 50/60Hz, 15A 3 ph 208/230v, 50/60 Hz, 10A	1.1 SCFM 30 l/min
10/08	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	15’	Boom	1 ph 208/230v, 50/60 Hz, 16A 3 ph 208/230v, 50/60 Hz, 11A	1.2 SCFM 34 l/min
10/09	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	15’	Boom	1 ph 208/230v, 50/60 Hz, 17A 3 ph 208/230v, 50/60 Hz, 12A	1.3 SCFM 38 l/min
12/10	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	16’6”	Boom	1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 13A	1.5 SCFM 42 l/min
12/11	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	16’6”	Boom	1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 14A	1.6 SCFM 46 l/min
14/12	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	18’	Stationary Arm	3 ph 208/230v, 50/60 Hz, 16A	1.8 SCFM 50 l/min
16/14	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	19’6”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 27A	1.9 SCFM 54 l/min
18/16	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	20’10”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 30A	2.0 SCFM 58 l/min
20/18	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	22’8”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 32A	2.2 SCFM 63 l/min
