Volt Series

Name: Volt Series
Brand: Anatol
Availability: InStock

$0.00

Email us about this product

Contact us for current pricing.

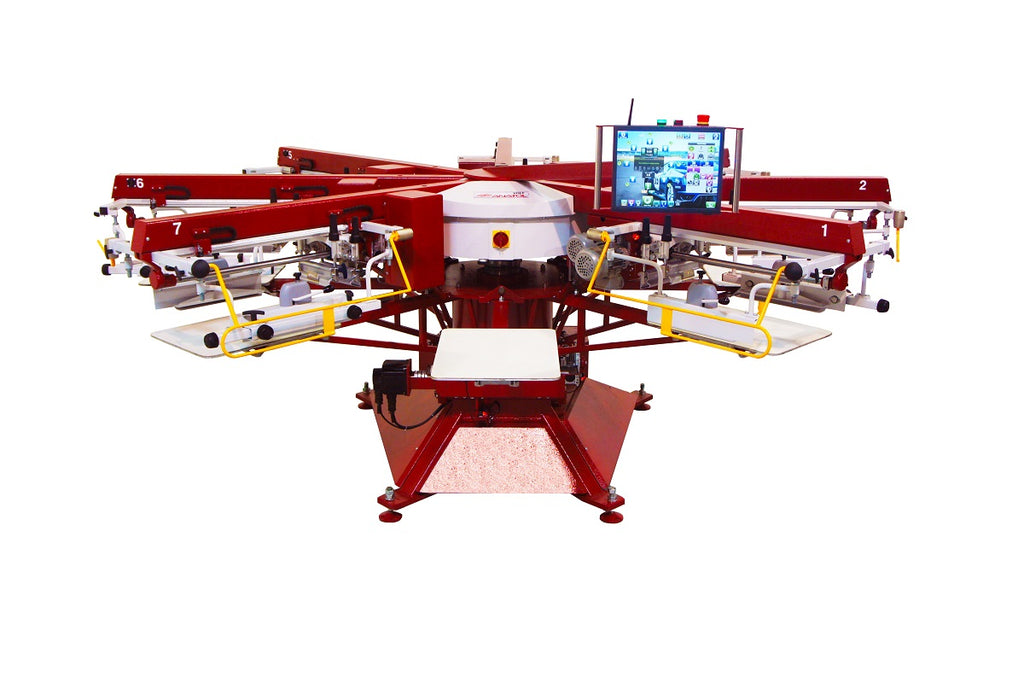

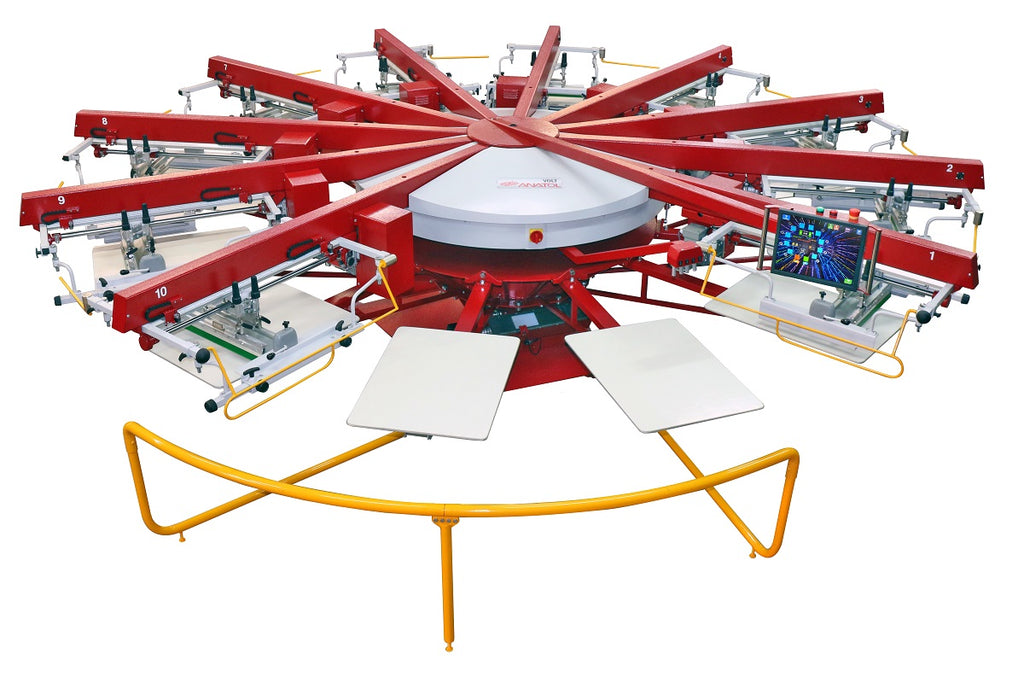

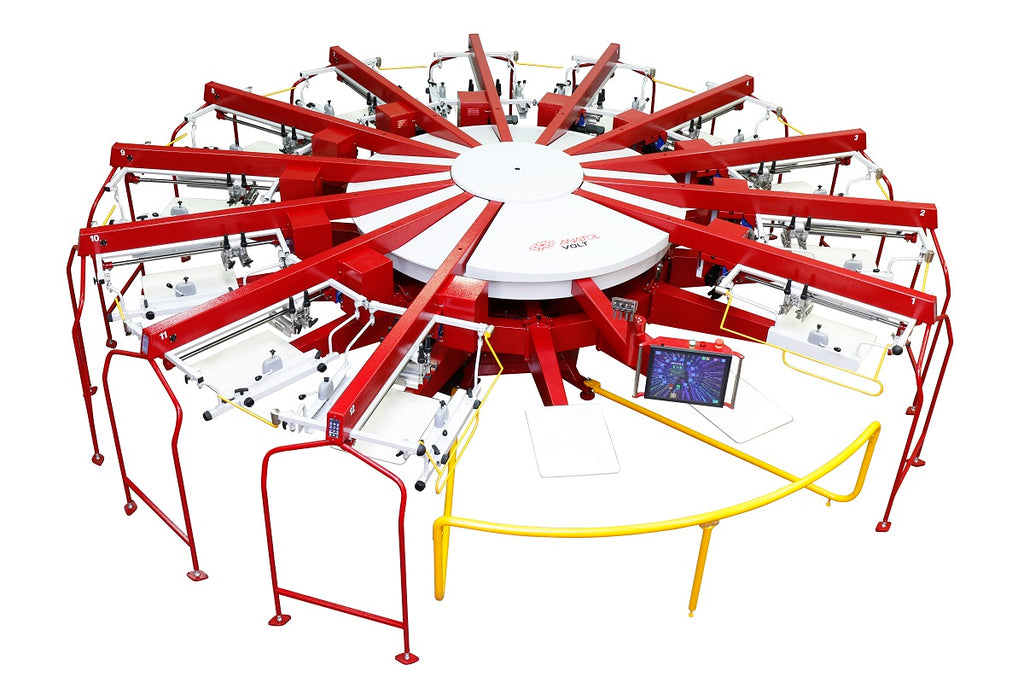

Automatic VOLT — The Future of Screen Printing… TODAY

The VOLT by Anatol is the only professional-grade electric automatic screen printing machine in the world. It gives you the speed, power and reliability of a screen printing press without the issues of a compressor or chiller. The VOLT uses reliable servo-driven indexers and servo lift to ensure years of reliable service without downtime caused by leaks in tubing and the build-up of dirt and moisture. Anatol’s VOLT is energy-efficient, capable of cutting your electric bill when compared to pneumatic automatic screen printing machines.

It’s designed for maximum ease of use with a 15” touchscreen interface, one touch digital off-contact controls, tool-less stroke and micro registration adjustments, laser alignment system and Speed Clamps screen locks. Anatol offers VOLTs to benefit shops of all sizes, with four models: VOLT S, VOLT M, VOLT L and VOLT XL, in configurations of 6 stations/4 colors to 20 stations/18 colors.

Standard features

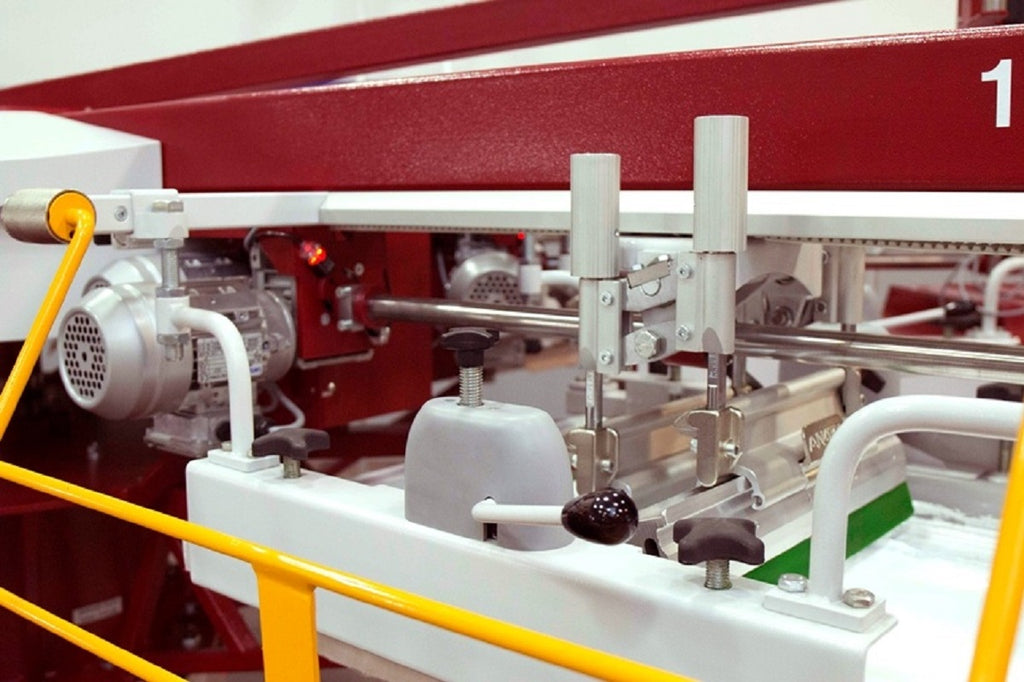

Print Heads

AC electric-driven print heads enhance smoothness, speed and power
Front and rear stroke adjustment
Single-handed tool-less squeegee/flood bar locking
Easily adjustable to side screen clamps accommodate a wide range of screen sizes
Optional servo-driven print heads offer digital stroke length and squeegee pressure adjustment

Control Interface

Aries 2 OS – User-friendly operating system
15’’ touchscreen with intuitive one-touch access to all job settings and machine functions for fast setup
Rotating boom arm for easy access to each print head
Easy access to operator’s manual
Automatic software updates available via Wi-Fi
Receive automatic email notifications with production statistics
Connect the machine directly to Anatol Service with Presentation Mode

Functions

Quickly save and recall all parameters of stored job: off-contact distance, indexer speed, print head speed, number of strokes, flash cure time and temperature, ink colors, print mode, and (with servo heads only) stroke length
Easily copy the same print head settings to all heads

Pallet System

Pallet System Slide-style pallets allow for adjustments in print location
Tool-free locking
Precise four-point pallet leveling system
16’’x22’’ solid aluminum, low profile rubber-coated pallets standard, with a wide variety of custom pallets available separately

Registration

True three-point micro-registration of screen (front-back, left-right, rotational movement)
Compatible with Anatol’s ARME pre-registration system, as well as a number of other pre-registration systems available on the market

Skip Shirt & Smash Button

Save time and supplies by preventing the press from printing on empty pallets with our Skip Shirt function on the control panel
Smash button allows for easy skipping of improperly loaded shirts to prevent misprints – more reliable than systems utilizing sensors

Indexing System

Servo indexer allows for clockwise, counter clockwise and half indexing – easily switch at the push of a button from job to job
Smooth and quiet indexing at high speeds
Ball bearing lead screw design with internal lubrication system
Freewheel capability available on most models allows for manual carousel rotation

Heads Up Feature

On machines with an odd number of print heads, this allows you to raise the last head on a hinge to create dedicated loading and unloading stations.
It’s like getting two machines in one. For instance, a 10 station/9 color machine can become a 10 station/ 8 color machine when you need two operators to load and unload and aren’t using the last head, allowing you to work faster.

Central Off-Contact

Digitally-controlled central off-contact with 38 settings up to 2/5’’, adjustable right from the machine’s touchscreen

Safety System

Safety bars, located between each print head and on each side of the load and unload stations, ensure safety during press set-up and operation

Laser Alignment System

Laser alignment system for quick and easy apparel alignment
Four independently-adjustable straight red lasers

Options

Quartz flash cure units
Foot pedal to control indexing
Quick-release pallet system
Variety of specialty and custom pallets available
Special sizing available for doorways as small as 28’’
Servo print heads allow you to control print stroke length and squeegee pressure digitally
Individual print head controls-membrane panel or touchscreen

The VOLT Specifications

Volt S

Stations Colors	Maximum Print Area	Maximum Screen Size	Standard Pallet Size	Press Diameter	Touchscreen Support	Electrical Requirements
06/04	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	9’ 4”	Boom	1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 11A
06/05	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	9’ 4”	Boom	1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 12A
08/06	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	10’ 2″	Boom	1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A
08/07	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	10’ 2″	Boom	1 ph 208/230v, 50/60 Hz, 21A 3 ph 208/230v, 50/60 Hz, 14A
10/08	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	11’ 2″	Boom	1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A
10/09	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	11’ 2″	Boom	1 ph 208/230v, 50/60 Hz, 32A 3 ph 208/230v, 50/60 Hz, 19A
12/10	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	12’ 4″	Boom	1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A
12/11	15″ x 16″ 38.1cm x 40.6cm	21″ x 28″ 54cm x 71cm	16″ x 22″ 41cm x 56cm	12’ 4″	Boom	1 ph 208/230v, 50/60 Hz, 37A 3 ph 208/230v, 50/60 Hz, 21A

*All presses with Stationary Arm touchscreen support include individual head controls

Volt M

Stations Colors	Maximum Print Area	Maximum Screen Size	Standard Pallet Size	Press Diameter	Stationary Arm or Boom Touchscreen Support	Electrical Requirements
06/04	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	9’8”	Boom	1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 11A
06/05	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	9’8”	Boom	1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 12A
08/06	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	10’11”	Boom	1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A
08/07	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	10’11”	Boom	1 ph 208/230v, 50/60 Hz, 21A 3 ph 208/230v, 50/60 Hz, 14A
10/08	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	12’3″	Boom	1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A
10/09	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	12’3″	Boom	1 ph 208/230v, 50/60 Hz, 32A 3 ph 208/230v, 50/60 Hz, 19A
12/10	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	13’6”	Boom	1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A
12/11	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	13’6”	Boom	1 ph 208/230v, 50/60 Hz, 37A 3 ph 208/230v, 50/60 Hz, 21A
14/12	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	15’7″	Boom	3 ph 208/230v, 50/60 Hz, 23A
16/14	16″ x 18″ 40.6cm x 45.7cm	23″ x 33″ 58.4cm x 83.8cm	16″ x 22″ 41cm x 56cm	17’5″	Boom	3 ph 208/230v, 50/60 Hz, 26A

*All presses with Stationary Arm touchscreen support include individual head controls

Volt L

Stations Colors	Maximum Print Area	Maximum Screen Size	Standard Pallet Size	Press Diameter	Touchscreen Support*	Electrical Requirements
06/04	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	10’5”	Boom	1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 11A
06/05	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	10’5”	Boom	1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 12A
08/06	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	12’0”	Boom	1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A
08/07	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	12’0”	Boom	1 ph 208/230v, 50/60 Hz, 21A 3 ph 208/230v, 50/60 Hz, 14A
10/08	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	13’8”	Boom	1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A
10/09	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	13’8”	Boom	1 ph 208/230v, 50/60 Hz, 32A 3 ph 208/230v, 50/60 Hz, 19A
12/10	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	15’3”	Boom	1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A
12/11	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	15’3”	Boom	1 ph 208/230v, 50/60 Hz, 37A 3 ph 208/230v, 50/60 Hz, 21A
14/12	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	16’8”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 23A
16/14	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	18’4″	Stationary Arm	3 ph 208/230v, 50/60 Hz, 32A
18/16	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	19’8”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 36A
20/18	20″ x 20″ 50.8cm x 50.8cm	26″ x 36″ 66cm x 91.4cm	16″ x 22″ 41cm x 56cm	21’4”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 38A

*All presses with Stationary Arm touchscreen support include individual head controls

Volt XL

Stations Colors	Maximum Print Area	Maximum Screen Size	Standard Pallet Size	Press Diameter	Touchscreen Support*	Electrical Requirements
08/06	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	13’10”	Boom	1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A
08/07	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	13’10”	Boom	1 ph 208/230v, 50/60Hz, 21A 3 ph 208/230v, 50/60 Hz, 14A
10/08	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	15’	Boom	1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A
10/09	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	15’	Boom	1 ph 208/230v, 50/60 Hz, 32A 3 ph 208/230v, 50/60 Hz, 19A
12/10	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	16’6”	Boom	1 ph 208/230v, 50/60 Hz, 36A** 3 ph 208/230v, 50/60 Hz, 20A
12/11	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	16’6”	Boom	1 ph 208/230v, 50/60 Hz, 37A** 3 ph 208/230v, 50/60 Hz, 21A
14/12	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	18	Stationary Arm	3 ph 208/230v, 50/60 Hz, 23A
16/14	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	19’6”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 32A
18/16	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	20’10”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 36A
20/18	20″ x 28″ 50.8cm x 71cm	26″ x 43″ 66cm x 109.2cm	16″ x 22″ 41cm x 56cm	22’8”	Stationary Arm	3 ph 208/230v, 50/60 Hz, 38A

*All presses with Stationary Arm touchscreen support include individual head controls
**Special order only
